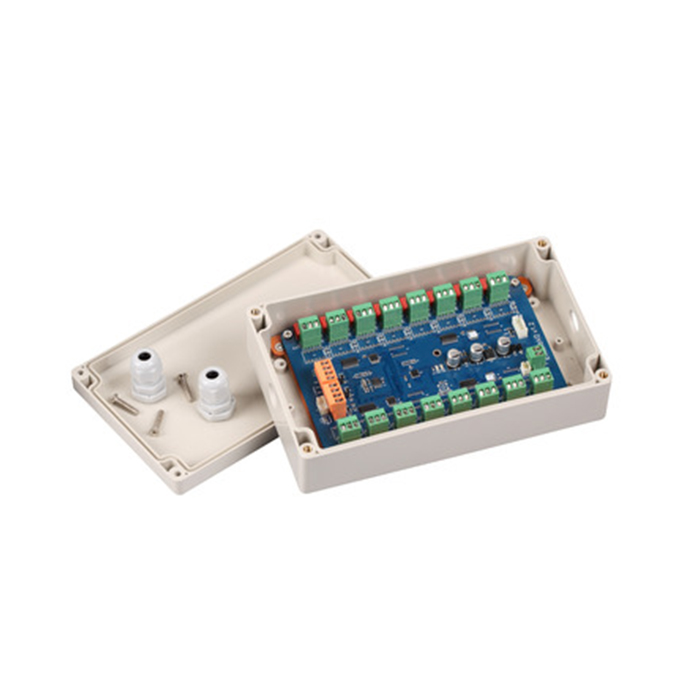

Name：EC01-16F
Model: EC01-16F
Introduce
Features
? Support Philips RF card (NXP Philip chip S50 card)
? Card reading distance: 3-5CM.
? No additional software required, compatible with hotel door lock management software
? 16-floor control, set up bridging.
? Support three management modes: any mode, floor mode and floor + time mode
? Support specific floor functions
? Support public floor function
? Support record query: 990 records
? Support fault automatic conversion: When the elevator controller fails, the elevator will automatically switch to any key mode
technical parameter
Power supply: 12VDC
Working current: 100mA
Card reader type: Mifare card (13.56MHZ)
Card reading distance: 3-5CM
Reading head size: 92mm x 63mmx 22mm
Working temperature -10~70 degree
Storage temperature: -25~100 degree
Working humidity: 5%~95%
